Sunlight, Mounting Height and PIR Range: A Pre‑Installation Checklist

A solar motion-sensor light can be simple to install, but the best location for the light is not always the best location for its solar panel or PIR sensor.

A wall may look convenient because it is close to a garage door, side entrance or driveway. But before drilling the mounting holes, three questions matter:

1. Will the solar panel receive enough direct sunlight?
2. Is the mounting height appropriate for this particular fixture?
3. Will the PIR sensor actually see people moving through the intended approach zone?

These questions are connected.

Mounting a light higher can change its practical sensing pattern. Moving it under an eave may protect the fixture visually but reduce solar charging. Pointing the light toward a driveway may illuminate the correct area while positioning the PIR sensor poorly for the way people actually approach.

The result is that a technically working light can still perform poorly simply because the installation location was not tested first.

This checklist is designed to help you evaluate the site before making the mounting position permanent.

Quick Pre-Installation Checklist

The important point is that the sensor specification is a planning value, not a guarantee that every person will be detected at exactly the maximum listed distance.

Murata notes that PIR detection distance can change with sensor sensitivity, optical and circuit design, ambient temperature, movement, clothing and direction of travel.

1. Start With Sunlight, Not With the Light Beam

With an integrated-panel solar wall light, the lamp, motion sensor and solar panel all share essentially the same mounting location.

That creates a compromise.

The position that gives you the best nighttime light may be:

• under a roof overhang,
• beside a recessed doorway,
• on the north side of a garage,
• beneath a tree canopy,
• between two buildings,
• or inside a deeply shaded passage.

Those locations can be useful for lighting but poor for solar charging.

The U.S. Department of Energy explains that shading from trees, roof features and surrounding structures can reduce photovoltaic energy production.

For a small solar light, the practical lesson is straightforward: do not judge the charging location only by how bright it looks at noon.

Check the exact wall at several points during the day if possible.

2. Look for Direct Sun at the Exact Mounting Position

Consider the 112-LED Solar Motion Sensor Wall Light.

Its solar panel is integrated into the fixture. The current product specifications list approximately 4–6 hours of charging in direct sunlight under suitable conditions.

That means moving the light just a few feet can matter.

Position A

Mounted directly above a side door beneath a deep eave.

Advantages:

• good lighting position,
• centered above the doorway,
• protected appearance.

Possible problem:

• the integrated solar panel may remain shaded for much of the day.

Position B

Mounted slightly to the side on an exterior wall receiving direct afternoon sun.

Possible advantages:

• substantially better solar exposure,
• still close enough to illuminate the entrance,
• the PIR sensor can potentially cover the approach path.

The visually symmetrical position is not automatically the better installation.

3. Check for Shade That Moves During the Day

Shade is rarely static. Before installation, look for:

• roof overhangs,
• gutters,
• chimneys,
• trees,
• hedges,
• neighboring buildings,
• fences,
• parked vehicles,
• seasonal foliage.

A wall that receives direct sunlight at 10 a.m. may be completely shaded at noon.

A location that performs well in summer can also receive much less solar energy in winter because the sun travels lower across the sky.

That does not mean every solar light requires perfect full-day exposure. It means the charging expectations should match the actual location.

For the Outdoor Solar Motion Sensor Wall Light, current product guidance recommends several hours of unobstructed direct sunlight and notes that charging and runtime vary with season, geographic location, cloud cover, temperature, panel angle and shade.

4. Clean Solar Exposure Matters After Installation Too

The installation is not the end of the charging check. A panel can gradually become obstructed by:

• dust,
• pollen,
• leaves,
• bird debris,
• snow,
• dirt from roof runoff.

U.S. Department of Energy photovoltaic guidance discusses shading and system conditions that affect energy yield. For a compact solar light with a relatively small panel, keeping the charging surface clear is part of normal maintenance.

5. Then Check Mounting Height

After confirming that the location can charge the light, evaluate the mounting height.

Do not assume that mounting higher is always better.

A higher position can sometimes:

• place the lamp farther from the ground,
• change the illuminated footprint,
• change the angle between the PIR sensor and approaching people,
• shift the practical detection area farther away,
• create a closer blind area,
• make testing and maintenance more difficult.

A lower installation changes those relationships again.

Panasonic's PIR sensor guidance shows that lens designs differ by installation height, field of view and detection distance and recommends evaluation under representative conditions.

So there is no universal rule that all outdoor PIR lights should be mounted at exactly one height. The correct height depends on the finished fixture.

6. Use the Product's Mounting Height as a Starting Point

For the 112-LED Solar Motion Sensor Wall Light, the current product information gives approximately 6.5–13 ft (2–4 m) as an initial mounting-height reference.

Its PIR specification is:

• 120° listed sensing angle
• 16–26 ft / 5–8 m listed sensing distance

Those values should be considered together.

If the light is mounted unusually high, unusually low or at a substantially different angle from its intended orientation, the useful detection zone may differ from what you expected from the specification alone.

A better process is:

1. Choose a location within the recommended range.
2. Temporarily position the light.
3. Wait until the sensor can be tested under nighttime conditions.
4. Walk through the expected approach routes.
5. Adjust the position if necessary.
6. Only then finalize the installation.

7. A 5–8 m PIR Range Does Not Mean a Perfect 8 m Circle

If a product says PIR detection distance: 5–8 m, that should not be interpreted as every person anywhere inside an 8-meter circle always activating the light.

PIR sensing depends on more than straight-line distance.

Murata identifies factors such as sensor sensitivity, optical design, circuit design, ambient temperature, movement speed, body size, clothing and direction of movement.

This is why a real installation should always be tested.

8. Crossing the Sensor's Field Can Matter

PIR sensors respond to changes in infrared radiation across their detection zones.

Because of that detection-zone structure, the way a person moves through the sensor's field can influence the response. A person walking across multiple sensing zones may create a different infrared change pattern from someone moving directly toward the sensor.

This is one reason why the best sensor location is not necessarily the position directly facing the center of the driveway. Think about the expected route instead.

Side Door

A person walks along a narrow side path and turns toward the door. A PIR sensor positioned to observe movement across that route may provide a useful trigger zone.

Garage

A person may:

• walk from the driveway toward the garage,
• exit a parked vehicle,
• approach from the side yard,
• walk from the garage toward the house.

Those are different movement patterns.

Front Gate

A visitor may walk laterally along a sidewalk before turning toward the property. Again, the relevant sensing zone may not be directly in front of the fixture.

9. Do a Walk Test Before You Commit to the Location

A simple nighttime walk test is one of the most useful installation steps.

After charging and activating the fixture:

Approach From the Front

Walk toward the light from the normal entrance route and note where the light activates.

Approach From the Left

Repeat from the side.

Approach From the Right

Repeat again.

Test the Closest Expected Position

Check whether someone directly beneath or very close to the fixture triggers it appropriately.

Test the Furthest Useful Position

Do not test simply to prove the absolute maximum detection distance. Test the distance where activation actually matters.

For a driveway, that might be the point where someone exits a vehicle. For a side entrance, it might be the beginning of the path. For a gate, it might be immediately after someone enters the property.

10. Compare 120° and 180° PIR Fixtures by the Actual Site

NoxLumin currently has two useful examples.

112-LED Solar Motion Sensor Wall Light

Listed PIR: 120° / 5–8 m.

This can fit a more defined approach zone such as a side entrance, smaller garage approach, path, patio entrance or basement doorway.

Outdoor Solar Motion Sensor Wall Light

Listed PIR: approximately 180° / 5–10 m.

This can be considered where a broader monitored area is useful, such as a wider garage entrance, driveway section, broader patio, barn entrance or workshop exterior.

But the wider number alone should not determine the purchase.

The product documentation notes that practical PIR sensitivity can change with mounting height, installation angle, ambient temperature, approach direction and surrounding conditions.

Compare the physical installation, not only the number printed in the specification table.

11. Avoid Using PIR Range to Choose Brightness

The Outdoor Solar Motion Sensor Wall Light is currently available in configurations up to:

• 450 lumens,
• 900 lumens,
• 1,100 lumens.

Choosing a higher-output version does not automatically mean the PIR sensor will detect farther. Likewise, a large PIR detection zone does not tell you how much usable light will reach the ground.

Evaluate separately:

Detection requirement: Where should movement trigger the fixture?

Lighting requirement: What area should become visible after the fixture activates?

Those are related installation questions, but they are not the same specification.

12. Watch for Eaves and Covered Entrances

Covered entrances are one of the most common solar-light installation conflicts.

The wall beneath the roof can be ideal for illuminating the door, protecting the fixture visually and placing the sensor near pedestrian traffic. But it may be a poor charging position.

Before installing an integrated-panel fixture under an eave, check whether the panel itself—not the wall nearby—actually receives direct sunlight.

If it does not, relocating the fixture may work. If relocating the fixture would compromise the lighting position, another product architecture may be more suitable.

13. When a Separate Solar Panel Makes More Sense

Sometimes the correct lighting position and correct solar-charging position simply cannot be the same place.

A shed is a clear example. You may need the lamp under a roof, inside the building, over a workbench or above a covered doorway, while the solar panel needs sun outside.

That is where a split system becomes useful.

The Split-Design Solar Pendant Light uses:

• a separate 5V / 4.5W solar panel,
• a 16.4 ft / 5 m connecting cable,
• an indoor or covered hanging lamp,
• Motion Sensor or Timer Control variants.

Its solar panel can therefore be positioned in direct sunlight while the lamp remains where illumination is needed.

If your planned light position is consistently shaded, consider browsing Solar Lights with Separate Solar Panel instead of forcing an integrated-panel light into a poor charging location.

14. Avoid Obstructions in the Detection Zone

Look outward from the sensor before installation.

Potential obstructions include:

• columns,
• downspouts,
• dense shrubs,
• fences,
• walls,
• stored equipment,
• parked vehicles.

A PIR specification may describe the sensor's intended field, but the physical environment still determines what the sensor can effectively monitor.

Vegetation creates another consideration. Branches and leaves can move repeatedly in wind, so avoid aiming the sensor unnecessarily into active vegetation if the important detection zone is actually a doorway or path.

15. Check the Light Direction at the Same Time

Sensor placement should not be evaluated separately from illumination.

After the PIR sensor triggers, where will the light actually go?

Check whether the fixture illuminates:

• steps,
• doorway,
• pathway,
• garage apron,
• gate,
• work area.

Also check whether it unnecessarily shines toward neighboring windows, nearby homes, drivers or the street.

A fixture can have a well-positioned PIR sensor and still be poorly aimed as a light.

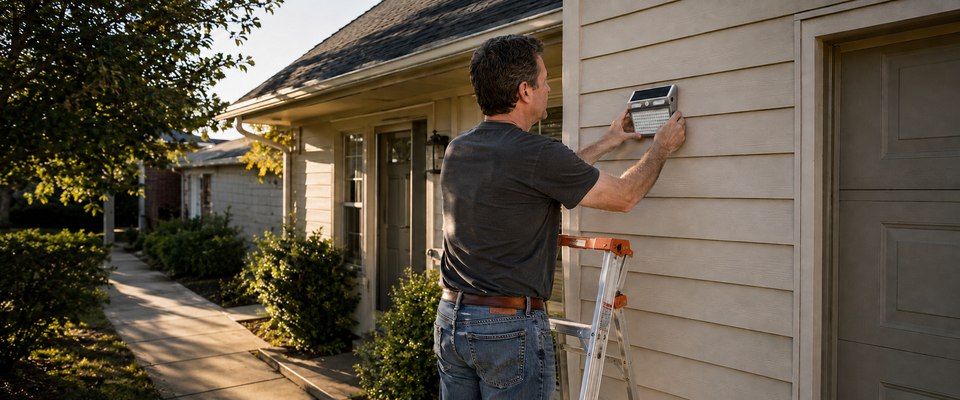

16. Test Before Drilling the Final Holes

Step 1 — Choose Two or Three Candidate Positions

Do not begin with one predetermined wall location.

Step 2 — Check Solar Exposure

Observe the panel position during daylight.

Step 3 — Compare Mounting Height

Stay within the product-specific guidance where available.

Step 4 — Check the Intended PIR Zone

Identify exactly where people should trigger the light.

Step 5 — Charge the Fixture

Follow the product's initial charging instructions.

Step 6 — Test After Dark

Walk all meaningful approach routes.

Step 7 — Check Light Direction

Confirm that the illuminated area is useful.

Step 8 — Finalize the Mounting Position

Only after the location passes both the daylight charging test and nighttime motion test should you make the installation permanent.

Pre-Installation Decision Table

Final Takeaway

A solar PIR light should not be installed by asking only: “Where do I want the light?”

A better installation decision asks three questions together:

Where can the solar panel charge?

Where can the PIR sensor monitor the useful approach zone?

Where can the lamp illuminate the area that actually needs light?

For an integrated solar wall light, all three functions share almost the same physical position. That is why sunlight, mounting height and PIR range need to be checked together.

Use the manufacturer's specifications to choose an initial location, but treat the listed detection angle and distance as planning values rather than guarantees. Then perform a real walk test after dark.

A few minutes of testing before final drilling can prevent common installation problems: weak charging, missed motion, unwanted triggers and light aimed at the wrong area.

You can compare suitable fixtures in Motion Sensor Solar Lights, Solar Wall Lights, Outdoor Lights Without Wiring, or, when the lamp and charging location need to be separated, Solar Lights with Separate Solar Panel.

Frequently Asked Questions

How much direct sunlight does a solar motion sensor light need?

What is the best mounting height for a PIR solar light?

Does mounting a PIR light higher increase its detection range?

Does a 26 ft PIR range mean the light will detect every person within 26 ft?

Why does my PIR light detect people better from the side?

Can I install an integrated solar light under a roof overhang?

Should I test a solar PIR light before drilling the mounting holes?
