What Does IP65 Mean for Outdoor Rope Lights? Rain, Connectors, and Installation Limits
IP65 outdoor rope lights are dust-tight and protected against water jets under defined test conditions, so they are suitable for normal outdoor rain and splashes when every connector and cut end is correctly sealed. IP65 does not mean the lights can be submerged, left in standing water, cleaned with a pressure washer, or installed with open connections. For a reliable solar rope-light project, treat the rope body, connectors, cut ends, cable route, and solar-panel location as separate parts of the installation.
IP65 in Plain English
The IP code is defined by IEC 60529. The International Electrotechnical Commission's IP-rating guidance explains that the code grades an enclosure's resistance to intrusion by solids and liquids. The two digits answer different questions:
| Code element | Technical meaning | Practical meaning for rope lights |
|---|---|---|
| First digit: 6 | Dust-tight enclosure | Dust should not enter the protected enclosure under the specified test conditions. |
| Second digit: 5 | Protection against water jets | The protected enclosure can resist water directed at it under the specified IPX5 test; this is not an immersion rating. |
| Complete rating: IP65 | Solid- and liquid-ingress classification | Appropriate for ordinary outdoor dust, rain, and splashes when the complete installed system remains sealed. |
The important phrase is under specified test conditions. An IP rating describes tested ingress protection; it is not a universal promise against every weather event, installation error, chemical, impact, temperature, or cleaning method. It also does not describe solar charging performance.
The Weakest Point Is Often a Connection
A rope light can have a sealed outer sleeve while the finished installation still fails at an open connector or freshly cut end. For the NoxLumin Premium Smart Solar COB Rope Light System, the current product guidance states that the IP65-rated system is designed for outdoor dust, rain, and splashes when all connectors and cut ends are properly sealed.
That creates four areas to inspect:
- Rope-light body: Check for cuts, punctures, crushed sections, or severe kinks before installation.
- Factory connectors: Fully mate and secure each weather-resistant connection according to the product instructions; a partly joined connector should be treated as unsealed.
- User-cut ends: Cutting at an approved mark opens the protective system. The new end must be resealed with the manufacturer-approved sealing method before outdoor use.
- Cable transitions: Support cable and connectors so their weight does not pull on the rope light or leave a connection sitting in a low point where water collects.
IP65 protection is therefore a system condition, not just a material label. If one exposed point is open, the printed rating on another component does not make the complete installation weather-resistant.
What Outdoor Conditions Are Reasonable?
| Condition | Is IP65 a reasonable match? | Installation response |
|---|---|---|
| Normal rain and wind-driven splashes | Generally yes, when the system is intact and sealed | Keep connections closed, supported, and out of standing water. |
| Lawn irrigation or nearby sprinklers | Possible, but avoid repeated direct spray at connectors | Move connections away from sprinkler heads and check for pooling. |
| Temporary puddles or submerged landscape edges | No | Raise the rope and connections above the known high-water line. |
| Pressure-washer cleaning | No | Disconnect the system and use gentle hand cleaning instead. |
| Snow, ice, salt, or coastal exposure | Not determined by IP65 alone | Follow product-specific environmental limits and inspect more frequently. |
| Foot traffic, mower contact, pinching, or impact | Not covered by the IP rating | Route the light and cable outside traffic and equipment paths. |
IEC reporting on lighting around water also distinguishes non-submerged uses from products intended for immersion. The practical conclusion is simple: weather-resistant does not mean underwater-rated.
Placement Advice for Common Outdoor Projects

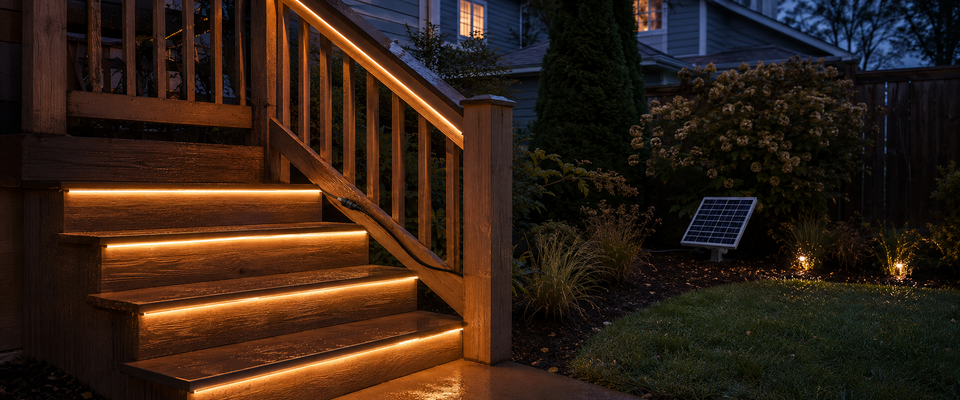

Steps and railings
Mount the rope beneath a tread lip or along the inside face of a railing where it can define the edge without becoming a trip point. Do not bridge an open walking path with the rope or its non-lighting cable. Keep connectors off the ground and away from the bottom of a stairway, where runoff commonly collects.
Fences and pergolas
Use clips at consistent intervals so the rope is supported rather than hanging from its connectors. At posts and corners, follow a gentle curve instead of forcing the 0.39 × 0.20 in (10 × 5 mm) rope through a sharp bend. Place connections under a beam or on a vertical surface when practical, while still preserving access for inspection.
Landscape borders
Keep the rope above soil, mulch, and low spots that remain wet after rain. A border that looks dry during installation may become a drainage channel during a storm. Observe the site after irrigation or rainfall before choosing permanent connector locations.
Trees and planting beds
Do not pull rope lights tightly around a growing trunk or branch. Leave enough allowance for movement and growth, avoid damaged bark, and keep connectors out of branch crotches that trap leaves and water. For decorative tree lighting, use a timer so the lights do not remain on after the area is no longer in use.
Solar-Panel Placement and Weather Protection Are Different Decisions
The rope light may belong in a shaded location while the solar panel needs stronger daytime exposure. The U.S. Department of Energy notes that excessive tree shade can reduce a site's suitability for solar collection. The NoxLumin system addresses this layout problem with a separate solar panel and selectable 16.4–32.8 ft (5–10 m) connection cable.
Choose the panel location first, then measure the non-lighting cable route to the beginning of the illuminated section. A longer cable can help move the panel beyond a pergola roof, tree canopy, or shaded fence, but it should not be stretched across a walkway, pinched by a gate, or left where a mower can reach it. For route and length calculations, use the existing solar rope-light measuring guide.
Where This NoxLumin System Fits
This system features 320 COB LEDs per meter, approximately 180-degree illumination, White and Warm White options, dusk-to-dawn control, and 5-hour, 8-hour, or 10-hour timer settings. Rope-length configurations range from 16.4 to 164.0 ft (5 to 50 m). The 16.4–82.0 ft (5–25 m) options use one continuous run, while the 98.4–164.0 ft (30–50 m) options use two runs connected through a 1-to-2 splitter.
This system makes sense for steps, railings, fences, pergolas, trees, and landscape borders where smooth continuous light is useful and the panel can be placed in adequate sun. It is not a suitable choice for ponds, fountains, regularly flooded borders, buried installations, vehicle routes, or locations where connectors cannot be kept sealed and accessible.
For a broader selection of outdoor solar systems with flexible panel placement, see Solar Lights with Separate Solar Panel or the main Outdoor Lights collection.
Pre-Installation Weather Checklist
- Confirm that the product is rated for the intended outdoor exposure.
- Inspect the rope body, connectors, cable, and end caps for damage.
- Map puddles, roof runoff, sprinkler coverage, and low drainage points.
- Keep every connection above soil, mulch, and standing water.
- Cut only at marked 2 in (5 cm) intervals and reseal the new end before outdoor use.
- Use gentle curves and support the rope so connectors carry no tension.
- Measure the solar-panel cable route separately from the illuminated route.
- Test the installation after a normal rain, then inspect seals periodically.
Common Mistakes to Avoid
- Treating IP65 as a submersion rating: It is not intended for installation underwater or in standing water.
- Leaving a cut end temporarily open: An unfinished end can defeat the weather protection of the installed run.
- Putting connectors at the lowest point: Water naturally follows cable and collects in depressions.
- Using a pressure washer: High-pressure cleaning can exceed normal exposure and force water into seals.
- Ignoring mechanical hazards: An IP rating does not protect against shoes, gates, mower blades, fasteners, or sharp corners.
- Choosing the lighting route before the panel location: A weather-resistant rope still needs enough stored solar energy to perform at night.
Use Only the Light You Need
DarkSky International's Five Principles for Responsible Outdoor Lighting recommend useful, targeted, low-level, controlled, and warm-colored light. For decorative rope lighting, place the illuminated line where it improves edge definition or atmosphere, choose the lowest useful brightness, and use a timer rather than running the lights longer than needed. Warm White is generally the more restrained choice around seating, planting beds, and trees, while White can provide clearer visual definition on steps and boundaries.
Frequently Asked Questions
Can IP65 rope lights stay outside in the rain?
Are IP65 rope lights waterproof?
Can IP65 rope lights be submerged in a pond or puddle?
Do cut ends remain IP65 after trimming the rope light?
Can I clean IP65 rope lights with a pressure washer?
Where should outdoor rope-light connectors be placed?
Does IP65 guarantee that a solar rope light will charge well?
